BIKES/NEW 2025/ARROW
ARROW
￥：12800.00
| Item | Details |
|---|---|

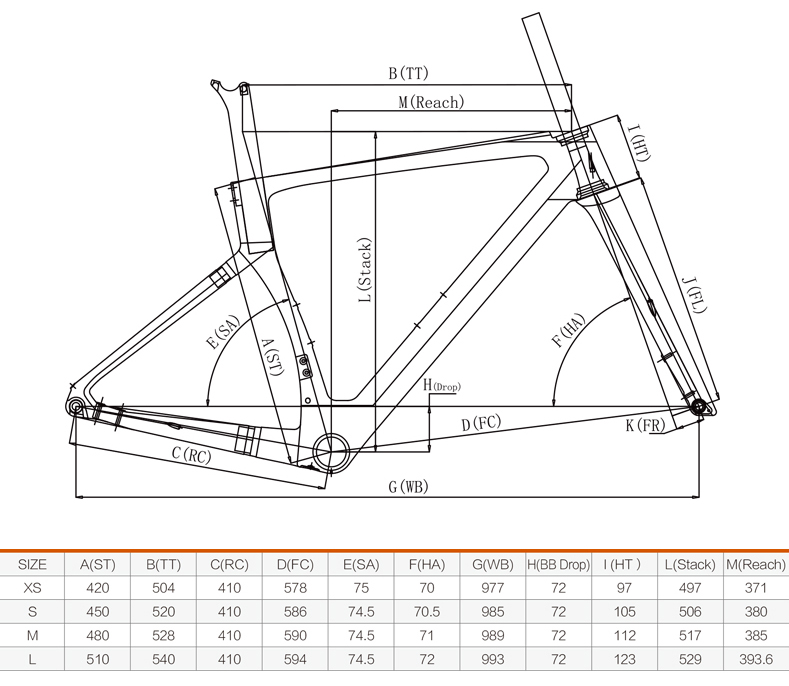

| Size | XS(420mm), S(450mm), M(480mm), L(510mm) |
| Frame | T800 + T1000 reinforced bottom bracket aerodynamic frame, EPS molding, fully hidden cable routing, BSA bottom bracket, 12mm thru-axle, UDH standard dropout, separate storage design for Shimano battery |
| Fork | T800 + T1000 reinforced carbon fiber fork, EPS molding, hidden cable routing, 12mm thru-axle |
| Handlebar Set | German Adler Augen 2025 unpainted aerodynamic handlebar, low wind resistance design, internal cable routing, 3K texture unpainted appearance, 6° unilateral offset, automatic warning locking structure headset |
| Chainset | Shimano 105, FC-R7100, 52-36T, 170mm |
| Shifting System | Shimano 105, R7170 electronic shifting, 2×12S |
| Brake System | Shimano 105, R7170 hydraulic disc brakes |
| BB | T47P1.0 thread, bottom bracket width 84.5mm + 2PCS1T shims |
| Chain | Shimano 105, CN-M7100 |
| Freewheel | Shimano 105, CS-R7100, 11-36T |
| Wheelset | German Adler Augen unpainted Classic series carbon fiber wavy rim, marble texture, front 50mm/rear 60mm height, ceramic bearing hubs, Sapim variable diameter spokes |
| Tire | Maxxis 700C×28C folding tire |
| Weight | 8.44kg |
